Venn Var 77 TCD filament wound tubeless clincher disc brake carbon rim

VAR filament winding process utilises slit tape towpreg to accurately lay up the carbon fiber in an automated, computer controlled process. The use of preimpregnated carbon fiber tape allows us to use the latest resins that offer the optimal blend of high glass transition temperature (Tg), toughness and impact resistance. Var rims can therefore be used in challenging conditions where extended braking periods are expected.

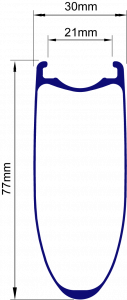

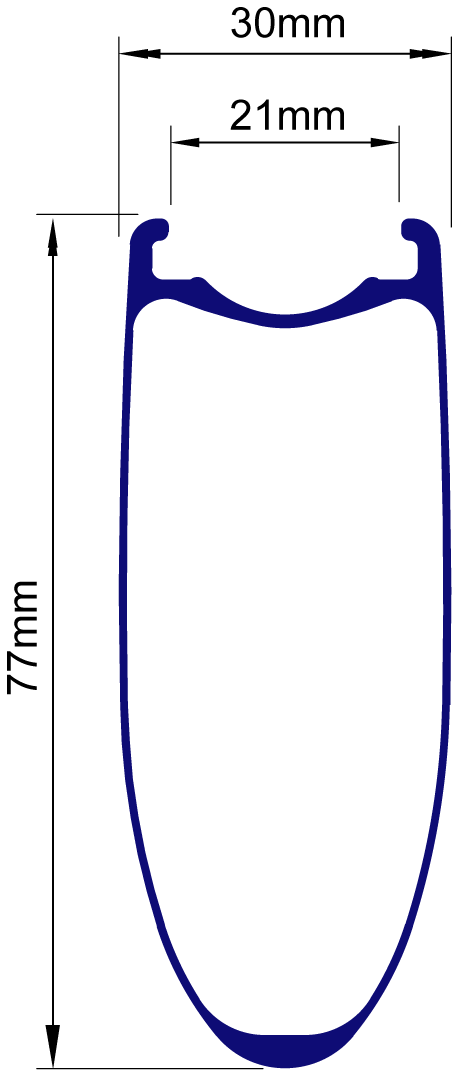

The profile of the Var 77 TCD rim was developed using the world first artificial intelligence driven process to offer the best aerodynamics when used with 25-28mm tires. The external width of 30mm optimizes the airflow in combination with wider tires, while the internal width of 21mm ensures that the wider tires achieve a stable, round profile.

The Var 77 rim profile achieves excellent aerodynamics in the real world conditions where the wind comes from different directions during your ride, not in a orderly manner as seen in wind tunnels. In fact the drag of Var 77 wheels falls in presence of cross winds

Selecteer opties en bestel

Description

Manufacturing technology Machine filament wound
Brake compatibility Disc
Tire type Tubeless/clincher
Size 29″, 700c
Width 30mm external, 21mm internal
Depth 77mm
Rider weight limit 110kg
Hole number 24 holes
ERD 484.2mm



Additional information
